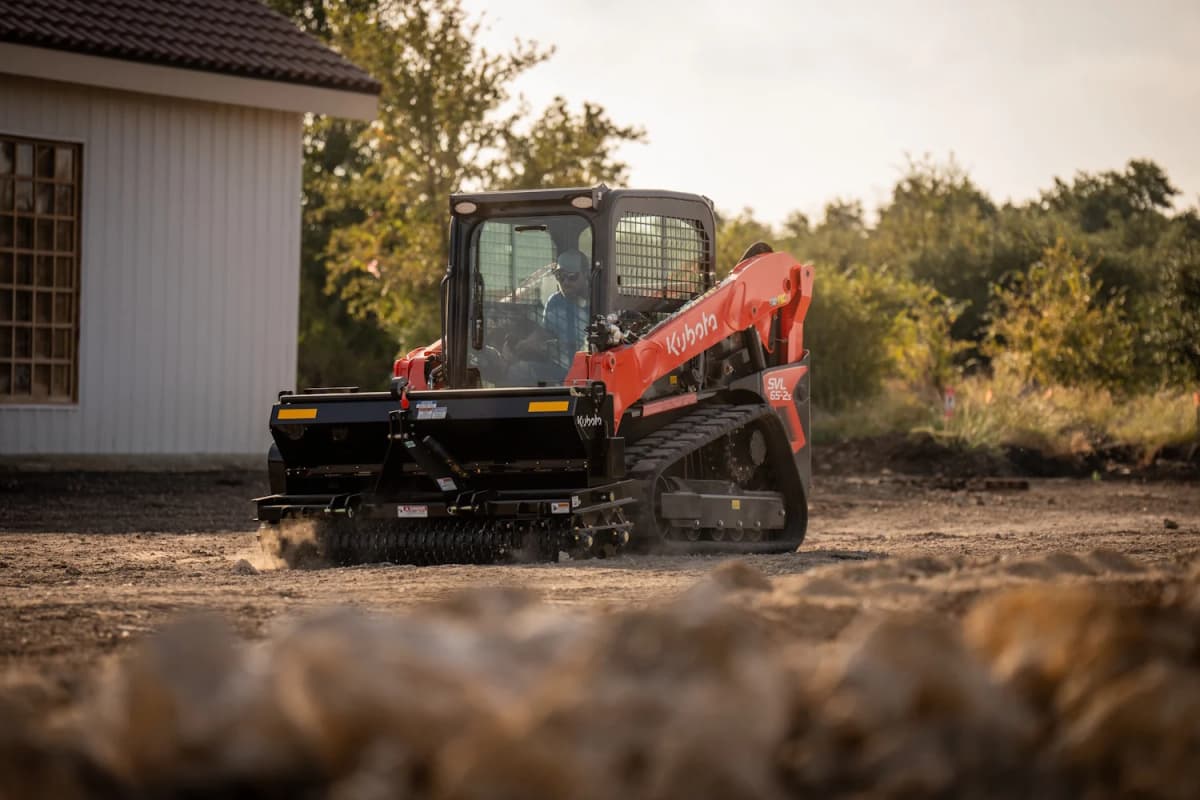

SVL65-2s

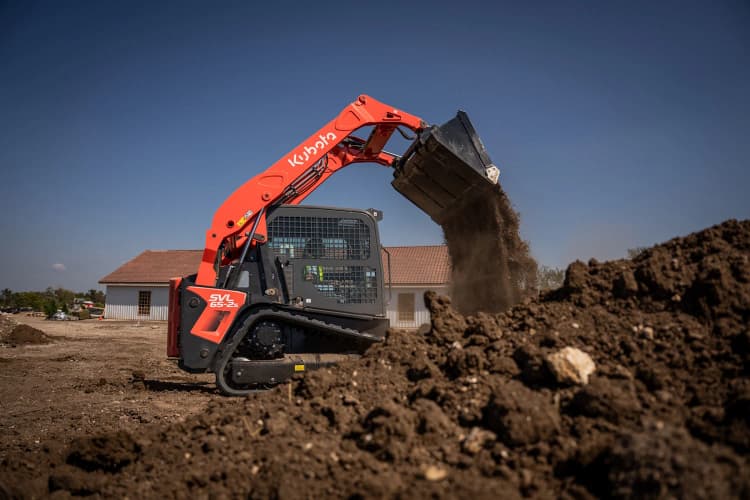

Outstanding Kubota Vertical Lift

Easily dump into dumpster or truck, thanks to Kubota's outstanding vertical lift. It raises the bucket even higher (118.5 in. at the hinge pin) without sacrificing any of the SVL65-2s's exceptionally long reach (34.9 in.).

Standard Self-leveling Function

This feature helps keep the bucket or fork in a horizontal position without the need to manually adjust the angle during lift. Can be turned on or off with click of a switch.

Electronic Travel Torque Management

The Electronic Travel Torque Management System lets you work faster. The ECU constantly monitors the load of the machine to optimize hydraulic pump output for smoother operation that keeps the engine running to get the job done.

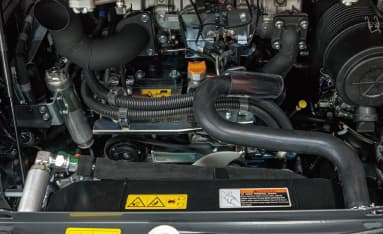

Powerful Kubota Engine

A reliable 68 HP* Kubota engine brings plenty of power to any excavating or loading job, letting you work faster and with greater efficiency.
_{*Engine HP Gross (SEA J1995)}

Common Rail System

The Common Rail System (CRS) electronically controls the fuel injection timing to optimize the fuel consumption.

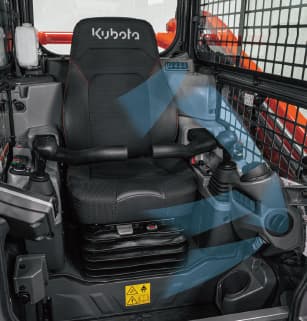

Optimized Air Conditioning

The climate control system provides an optimized airflow for outstanding cooling and heating performance and supreme operator comfort all year round.

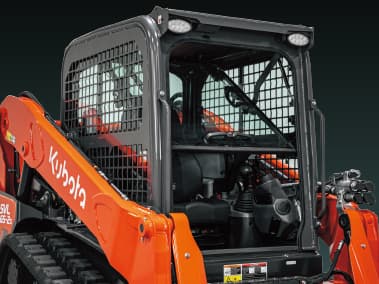

Roomy and Clean Cab

With a large and comfortable operator's station, the SVL65-2s offers an extra level of comfort and convenience.

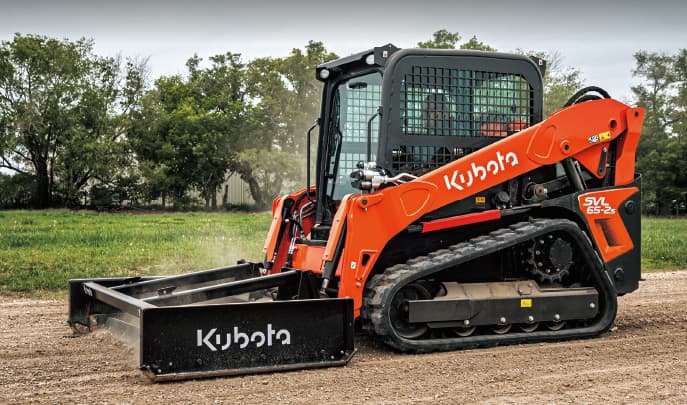

Standard Two-speed Travel

With a maximum top speed of 4.9 mph in low gear, and 7.1 mph in high gear to get the job done faster.

High Ground Clearance

A high ground clearance of 9.2 inches lets you travel over large obstacles with ease.

Kubota Shockless Ride (KSR) (Option)

Kubota's ride control system(KSR) is now available with the SVL65-2s. It is a loader suspension that enhances comfortability and helps reduce spilling loads on rough terrain.

Auto-Shift

Auto shift allows machines to turn smoothly. The ECU is constantly monitoring the traction load. When the traction load gets high while turning, but before the machine starts to lose traction, it automatically shifts down for better low range torque. Once the traction load is eased, it shifts back up, automatically for high speed.

Track Response

Operators can now change the sensitivity of their machine control response through the LCD panel. The SVL65-2s offers you a choice of three track response settings: Mild, Normal, and Quick.

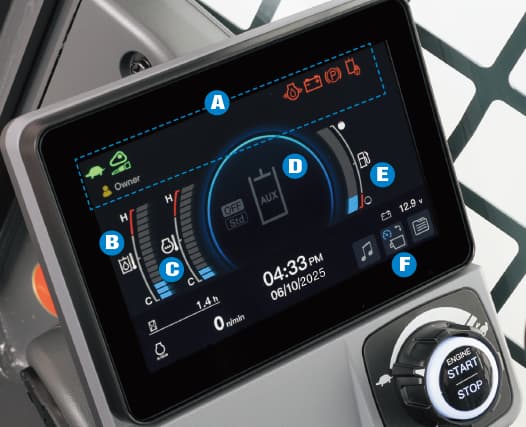

Color LCD Touch Panel with Jog Dial

The SVL65-2s's digital color LCD Touch Panel builds on the success of the Kubota's Intelligent Control System by providing a wide range of functions to keep you aware of the SVL65-2s's operating status at all times. This panel features touch and jog dial enabled controls for quickly selecting operations and functions, as well as easy-to-read indicators and alerts. The panel is positioned to the front right of the operator for excellent visibility and fast access.

Rear View Camera

The standard rear view camera allows for better rear visibility on the job site. The rearview can be set to display continuously or only when in reverse.

Keyless Engine Start

The machine is accessed by entering a 4-digit passcode on the LCD Touch Panel, allowing the engine to be started with the touch of a button. With the ability to setup to 51 user passcodes, lost keys will be a thing of the past.

Radio with Bluetooth^® (Closed Cab only)

Standard on Closed Cab units, our integrated Bluetooth^® radio allows for seamless streaming and hands free calling.

Sliding Front Door

Kubota's traditional slide up front door can be opened regardless of the position of the bucket or loader arms. This allows for machine operation with the door open if desired.

Highback seat (Standard)

The SVL65-2s comes standard with a high back seat that will help to support your body and ease your fatigue.

Heated Air Suspension Seat (Option)

Air suspension seat for a comfortable ride during long days, and heat to improve comfort when it gets cold.

Plenty of Legroom

The SVL65-2s's cab provides plenty of leg and foot room. The floor mat can be removed for cleaning, and a small opening in the floor allows easy removal of dirt and debris.

LED Work Lights (Front and Rear)

LED lights allow for maximum visibility in low-light conditions.

Wide Cab Entrance

A wide entrance makes it easier to get in and out.

Slide and Tilt Radiator and Oil Cooler

Both the radiator and the oil cooler quickly slide forward and tilt downwards, helping to ensure access to other engine parts during maintenance.

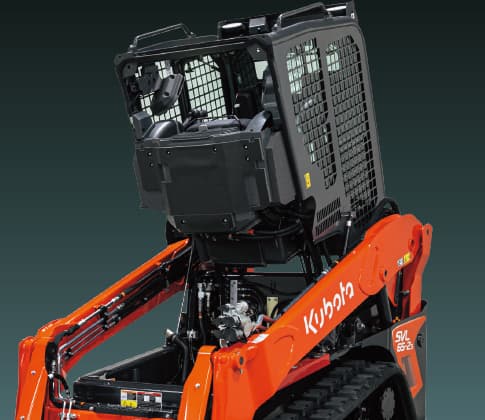

Tilt Up Cabin

The cab can be tilted 72°, without having to lift the arm, allowing easy access to the hydraulic pumps, valves, lines and hydraulic tank.

Bolt on Handrails

The handrails are bolted to the cab to allow for quick and easy replacement in the event they get damaged.

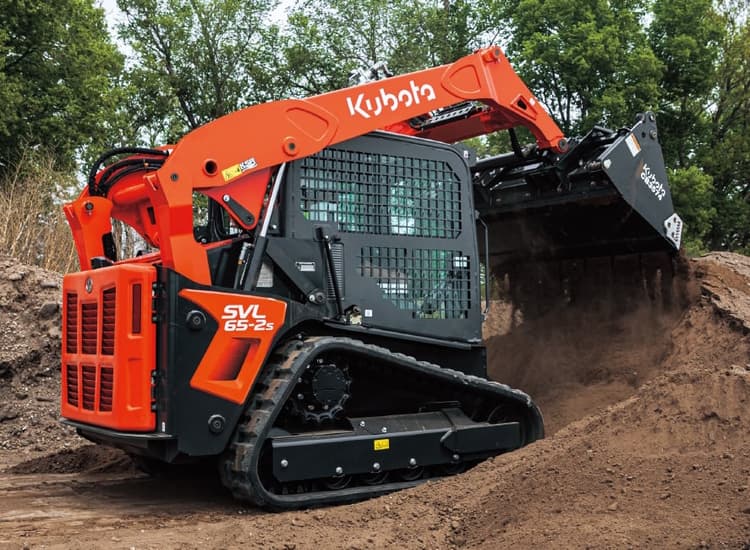

Welded, Integrated Mainframe and Undercarriage

The undercarriage forms an integral part of the mainframe for maximum durability.

Kubota Original Rubber Tracks

Kubota genuine rubber tracks support your works. We offer 12.6" (320mm) and 15.0" (380mm) wide tracks from the factory option.

Triple Flange Lower Track Rollers

A reliable triple flange design helps minimize the chance of detracking and helps improve stability. They are sealed and kept lubricated.
